Architect Agent Setup: OpenClaw + Slack + OpenRouter

Introduction

If you’ve ever wanted a sceptical, technically rigorous voice in your Slack channel to challenge architecture decisions before they ship, the Architect Agent is that. It’s a Slack bot that behaves like a Chief Systems Architect: it interrogates designs, surfaces failure modes, and asks the questions you should have asked before committing to a stack.

The use case is straightforward. You paste a proposed architecture—FastAPI, Firebase auth, FFmpeg SRT-to-HLS, Kubernetes on AWS, S3, CloudFront, PostgreSQL, Stripe—and the agent responds with structured analysis: top failure risks, security holes, cost-to-scale breakdowns, RTO/RPO expectations, rollback strategies. It doesn’t rubber-stamp. It pushes back. That’s the point.

This guide walks through the full setup: OpenClaw as the multi-agent gateway, Slack as the channel, and OpenRouter as the LLM provider. The data flow is:

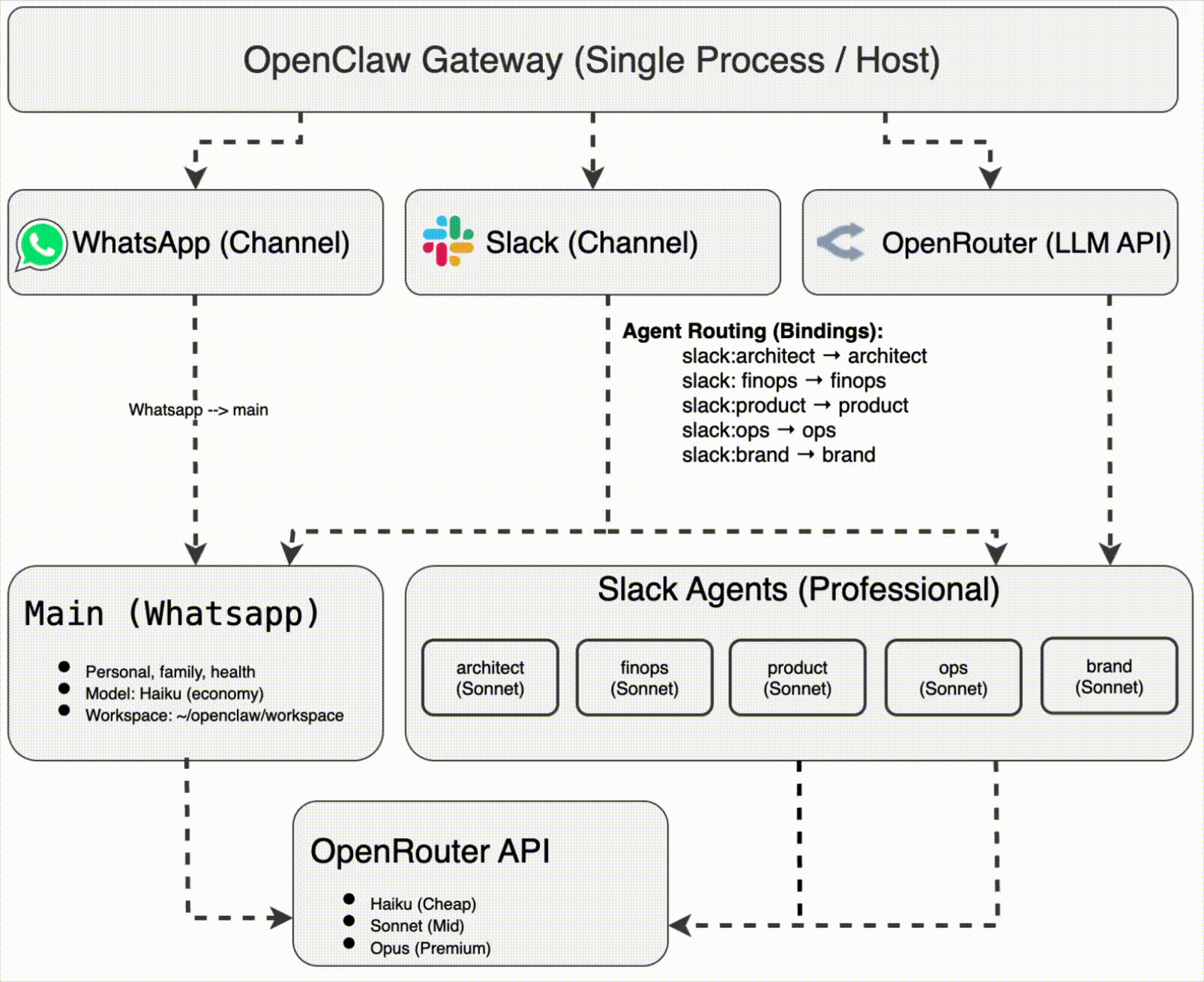

Slack → OpenClaw Gateway → Architect Agent → OpenRouter (Claude) → Response → Slack

You’ll need OpenClaw installed, an OpenRouter API key, and a Slack workspace. The setup is suitable for experimentation and internal team use. We’ll cover when not to deploy this publicly and what production hardening would require.

Prerequisites

Requirement	How to obtain
OpenClaw	docs.openclaw.ai or `npm install -g openclaw`
OpenRouter API key	openrouter.ai
Slack workspace	Any workspace where you can install apps

Verify OpenClaw:

openclaw --version

Architecture Decisions: Why These Choices

Before the step-by-step, a few design choices worth understanding.

Socket Mode vs Public Webhook

Slack bots can receive events in two ways:

Public webhook: Slack sends HTTP POST requests to a URL you host. You need a publicly reachable endpoint, TLS, and something to handle retries and verification.
Socket Mode: The bot initiates an outbound WebSocket to Slack. No public URL, no ingress, no firewall changes. The connection is initiated from your side.

OpenClaw uses Socket Mode. That means you can run the gateway on a laptop, a VM behind NAT, or anywhere with outbound internet. No need to expose ports or configure reverse proxies. The trade-off: Socket Mode has different rate limits and connection semantics than the Events API over HTTP, but for a single-agent setup it’s sufficient.

OpenRouter vs Direct Anthropic

OpenRouter is a unified API that routes to multiple LLM providers (Anthropic, OpenAI, others). Using it instead of calling Anthropic directly gives you:

Model flexibility: Switch models or providers without changing integration code. OpenClaw already supports model selection per agent.
Fallback chain: If the primary model fails or is rate-limited, OpenRouter can route to a fallback.
Single integration point: One API key, one endpoint. Useful when you run multiple agents with different model tiers.

The cost is an extra hop. For most workloads the latency impact is negligible. If you need minimal latency and only ever use Claude, you could wire OpenClaw to Anthropic directly, but that would require customisation beyond this guide.

Model Choice: Sonnet vs Opus

The Architect uses Claude Sonnet (claude-sonnet-4-6) by default. Sonnet offers strong reasoning for architecture review without the cost and latency of Opus. For most design critiques—failure modes, security gaps, cost analysis—Sonnet is sufficient.

Upgrade to Opus when you need deeper, multi-step reasoning or very large context. You can override per-agent:

openclaw config set agents.list[1].model.primary "openrouter/anthropic/claude-opus-4-6"

Channel-to-Agent Binding

OpenClaw routes incoming messages to agents via bindings. A binding maps (channel, accountId) to an agent. For the Architect:

Channel: slack
Account: architect (the Slack app you create)
Agent: architect

So messages sent to the Architect Slack app are routed to the Architect agent. Other Slack apps (e.g. finops, product) would bind to different agents. One Slack app per agent; all can live in the same workspace. Users @mention the bot they want.

Step-by-Step Setup

Phase 1: OpenRouter Configuration

1.1 Set API Key

OpenClaw needs an OpenRouter API key to call the LLM. Set it in your environment:

export OPENROUTER_API_KEY="sk-or-v1-..."

For persistence, add to ~/.openclaw/.env:

OPENROUTER_API_KEY=sk-or-v1-...

Alternatively, use the interactive configurator:

openclaw configure --section model

Select OpenRouter and enter your key. This writes to the agent’s auth profile.

1.2 Set Default Model (Optional)

If you want Sonnet as the default for all agents:

openclaw models set openrouter/anthropic/claude-sonnet-4-6

You can also set the model per-agent after creating the Architect (Phase 3).

Phase 2: Slack App Setup

You need a Slack app with Socket Mode enabled and the correct OAuth scopes. One app per agent.

2.1 Create the App

Go to api.slack.com/apps
Create New App → From scratch
App Name: Architect Bot (or OpenClaw Architect)
Workspace: Select your workspace
Create App

2.2 Enable Socket Mode

Socket Mode lets the app receive events over an outbound WebSocket instead of HTTP.

Settings → Socket Mode
Toggle Enable Socket Mode → On
Under App-Level Tokens, click Generate
Token Name: openclaw
Scopes: connections:write
Generate
Copy the token (xapp-1-...). Slack shows it once; store it securely.

2.3 Configure Bot Token Scopes

The bot needs permission to read messages and reply.

OAuth & Permissions (left sidebar)
Under Bot Token Scopes, add:
- app_mentions:read — required for the bot to see @mentions
- chat:write — send messages
- channels:history — read public channel messages (if used in channels)
- im:history — read DMs
- im:write — send DMs
- users:read — resolve user info
Install to Workspace → Allow
Copy the Bot User OAuth Token (xoxb-...)

Without app_mentions:read, the bot will not receive events when @mentioned. This is a common oversight.

2.4 Add Bot to Slack

Channel: /invite @Architect Bot in the target channel
DM: Open a direct message with the bot from the Apps section

Phase 3: OpenClaw Channel and Agent

Order matters. Register the Slack channel before creating the agent. Otherwise you’ll get Unknown channel "slack".

3.1 Add Slack Channel

Option A — Interactive

openclaw configure --section channels

Select Slack
Account ID: architect
App Token: paste xapp-...
Bot Token: paste xoxb-...

Option B — Manual config

Edit ~/.openclaw/openclaw.json and ensure channels includes:

channels: {
  slack: {
    enabled: true,
    mode: "socket",
    accounts: {
      architect: {
        appToken: "xapp-1-...",
        botToken: "xoxb-...",
      },
    },
  },
},

Verify:

openclaw channels list

You should see slack with account architect.

3.2 Create Architect Agent

openclaw agents add architect \
  --workspace ~/.openclaw/workspace-architect \
  --bind slack:architect

This creates:

~/.openclaw/workspace-architect/ — agent workspace (persona files go here)
~/.openclaw/agents/architect/agent/ — agent directory (auth, sessions)
Binding: slack:architect → Architect agent

Verify:

openclaw agents list --bindings

Expected: architect → slack:architect

3.3 Assign Model (if not using default)

Find the agent index:

openclaw config get agents.list

Then set the model (e.g. index 1):

openclaw config set agents.list[1].model.primary "openrouter/anthropic/claude-sonnet-4-6"

Or edit openclaw.json and add to the architect entry:

{
  id: "architect",
  name: "Chief Systems Architect",
  workspace: "~/.openclaw/workspace-architect",
  agentDir: "~/.openclaw/agents/architect/agent",
  model: { primary: "openrouter/anthropic/claude-sonnet-4-6" },
}

Phase 4: Persona Files

The Architect’s behaviour is defined by three files in its workspace: SOUL.md (identity), AGENTS.md (session flow, memory, tools), and USER.md (your context). These follow the OpenClaw workspace structure.

4.1 Copy Persona Files

From the OpenClaw repo or your persona source:

cp personas/architect/SOUL.md personas/architect/AGENTS.md personas/architect/USER.md ~/.openclaw/workspace-architect/

Or with brace expansion:

cp personas/architect/{SOUL,AGENTS,USER}.md ~/.openclaw/workspace-architect/

4.2 Customise USER.md

Edit ~/.openclaw/workspace-architect/USER.md to add your domain, stack, projects, and constraints. This gives the agent context about who it’s helping and what matters.

Phase 5: Run and Verify

5.1 Start Gateway

openclaw gateway restart

Or for a long-running process:

openclaw gateway start

5.2 Status Checks

openclaw agents list --bindings
openclaw channels status --probe
openclaw models status

Expected:

architect bound to slack:architect
Slack: connected
Model: Sonnet (or your override)

5.3 Test in Slack

@mention the Architect bot in Slack
Send a test prompt, e.g.:Review this stack: FastAPI + Firebase auth + FFmpeg SRT→HLS + K8s on AWS + S3 + CloudFront + PostgreSQL + Stripe. Target: 5K concurrent viewers. What are the top 5 failure risks?
The Architect should respond with structured analysis: failure modes, security concerns, cost implications, and follow-up questions.

Optional: Agent-to-Agent

To let the Architect consult other agents (e.g. a FinOps agent for cost analysis):

openclaw config set tools.agentToAgent.enabled true
openclaw config set tools.agentToAgent.allow '["architect","finops"]' --strict-json

The Architect can then use sessions_send or sessions_spawn to delegate to FinOps and incorporate the response. Both agents must exist and be in the allowlist.

Troubleshooting

Issue	Fix
`Unknown channel "slack"`	Add Slack channel before creating agent (Phase 3.1)
Bot doesn’t respond to @mentions	Add `app_mentions:read` scope, reinstall app to workspace
`Invalid token`	App Token (`xapp-`) and Bot Token (`xoxb-`) are different; ensure each is in the correct field
Gateway won’t start	Verify `OPENROUTER_API_KEY`; run `openclaw channels status --probe`
Agent responds but wrong persona	Verify SOUL.md and AGENTS.md exist in `~/.openclaw/workspace-architect/`

Common Mistakes

Creating the agent before adding the Slack channel — Bindings reference channels by name. If slack isn’t registered, the binding fails.
Swapping App Token and Bot Token — App Token (xapp-) is for Socket Mode; Bot Token (xoxb-) is for API calls. They go in different config fields.
Omitting app_mentions:read — Without it, the bot never receives events when @mentioned.
Forgetting to install the app to the workspace — OAuth flow must be completed before the Bot Token is valid.
Copying persona files to the wrong directory — They must be in ~/.openclaw/workspace-architect/, not the agent dir.

Validation Checklist

Before considering the setup complete:

[ ] openclaw channels list shows slack with account architect
[ ] openclaw agents list --bindings shows architect → slack:architect
[ ] openclaw channels status --probe reports Slack connected
[ ] openclaw models status shows the correct model and auth
[ ] SOUL.md, AGENTS.md, USER.md exist in ~/.openclaw/workspace-architect/
[ ] Bot responds to @mentions in Slack with Architect-style analysis

How It Works Internally

When you @mention the Architect bot in Slack:

Slack sends an event over the Socket Mode WebSocket to the OpenClaw gateway.
OpenClaw matches the event to the binding slack:architect → architect agent.
Architect agent loads its workspace: SOUL.md (identity), AGENTS.md (instructions), USER.md (your context). It may also load memory/YYYY-MM-DD.md for recent context.
Agent constructs a prompt with the message and workspace context, then calls OpenRouter with the configured model (e.g. Claude Sonnet).
OpenRouter returns the completion. The agent formats it and sends the response back via the Slack API.
Slack delivers the message to the channel or DM.

Sessions are per-conversation. The agent doesn’t persist state between unrelated threads unless you configure memory or agent-to-agent flows.

Production Hardening Considerations

This guide targets experimentation and internal use. For production:

Secrets: Store tokens in a secrets manager (e.g. AWS Secrets Manager, HashiCorp Vault), not in plain config. Rotate periodically.
Availability: Run the gateway as a supervised process (systemd, Kubernetes) with health checks and restart policies.
Rate limiting: OpenRouter and Slack have rate limits. For high-volume use, add client-side throttling and backoff.
Audit logging: Log which agent handled which message, for compliance and debugging. OpenClaw may support this; check the docs.
Network: Run in a private network with egress-only internet if possible. Socket Mode only needs outbound connectivity.
Model costs: Monitor OpenRouter usage. Sonnet is cheaper than Opus but costs add up at scale.
Input validation: The agent receives arbitrary Slack input. Ensure no sensitive data is logged or leaked in prompts.

When Not to Deploy This Publicly

Untrusted users: The Architect has access to whatever context you put in USER.md and memory. Don’t expose it to users who could extract that information.
Unmoderated channels: In public channels, anyone can @mention the bot. You have no control over prompt injection or abuse.
Compliance-sensitive data: If you’re in healthcare, finance, or similar, verify that sending architecture descriptions to OpenRouter (and thus to Anthropic) complies with your policies.
Critical path: Don’t put the Architect in the critical path of deployments or approvals without redundancy and fallbacks.

Sandbox vs Production

This setup is suitable for:

Single-machine or single-box experimentation
Internal team channels with trusted participants
Architecture review workflows where humans make the final call

It is not, without additional work, suitable for:

Multi-tenant SaaS
Public-facing Slack apps
Environments with strict compliance requirements
High-availability production workloads

Treat it as a tool for your team, not as production infrastructure.

Summary and Next Steps

You now have an Architect agent in Slack that challenges architecture decisions. The flow is: Slack → OpenClaw → Architect Agent → OpenRouter (Claude) → Slack.

Next steps:

Customise USER.md with your domain, stack, and constraints.
Add more agents (FinOps, Product, Ops) and enable agent-to-agent if you want cross-agent consultation.
Tune the model — try Opus for complex audits if Sonnet isn’t sufficient.
Review the persona — edit SOUL.md and AGENTS.md to match your team’s style and focus areas.

Quick reference:

Task	Command
Add Slack channel	`openclaw configure --section channels`
Create Architect agent	`openclaw agents add architect --workspace ~/.openclaw/workspace-architect --bind slack:architect`
Copy personas	`cp personas/architect/{SOUL,AGENTS,USER}.md ~/.openclaw/workspace-architect/`
Restart gateway	`openclaw gateway restart`
List bindings	`openclaw agents list --bindings`
Channel status	`openclaw channels status --probe`

Documentation:

Architect Agent — End-to-End Setup Guide (OpenClaw + Slack + OpenRouter)
